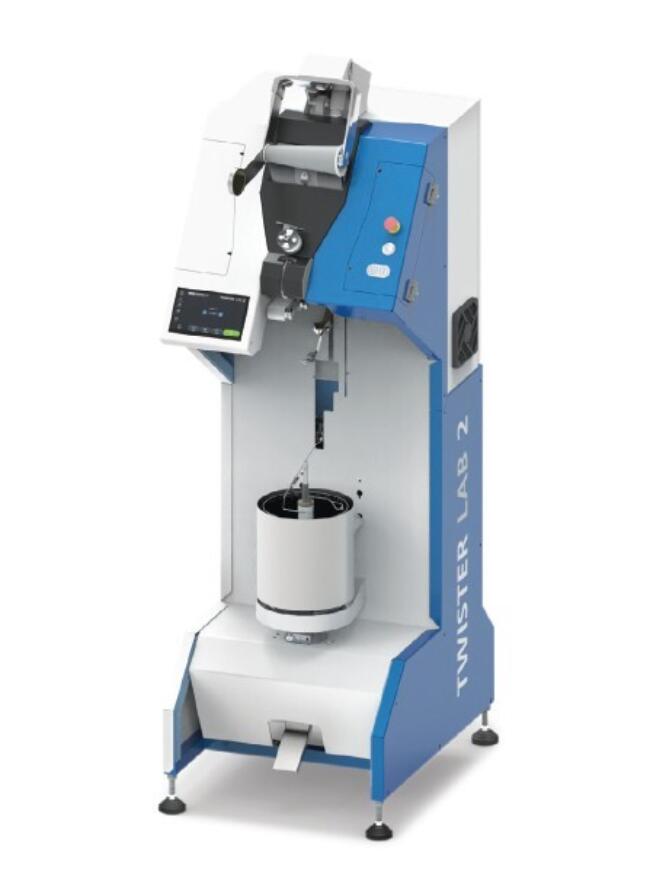

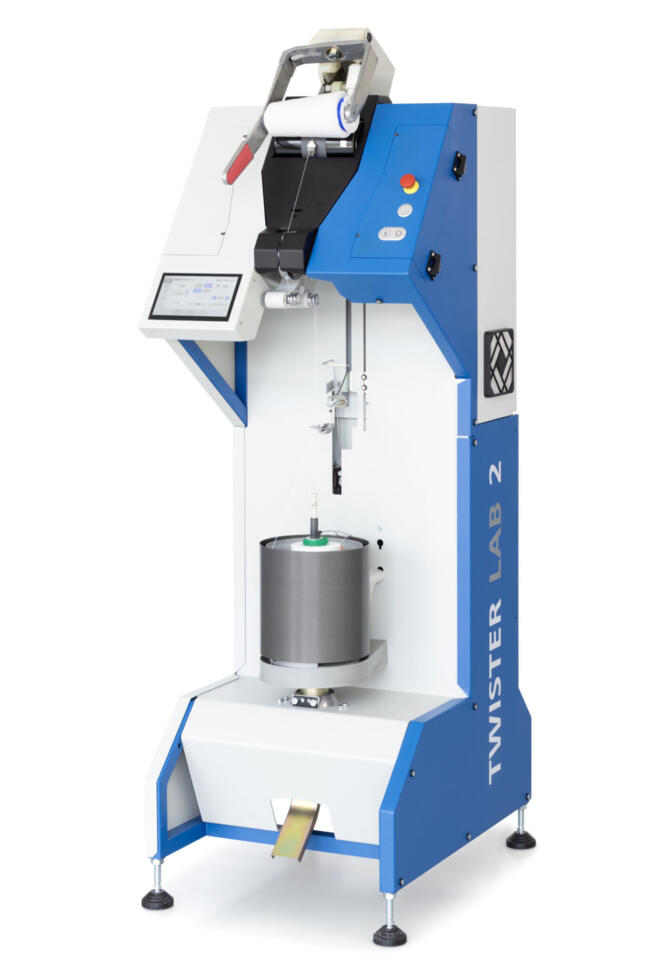

TWISTER LAB 2 | 3373S
Single head laboratory TFO, for the accurate production of twisted yarn samples having the same quality standards as the ones made by production machines - project powered by Savio Sirius.
Twisting spindle type B, which versatility allows a wide range of production. Yarn count range: cotton Ne 10-90/2; wool Nm 15-80/2.
Feeding package dimensions: 178 x 162 - 200 x 162 mm
(traverse x diameter).
TWISTER LAB 2 is designed to produce a 6” winding package, with a 4°20’ conical base shape.

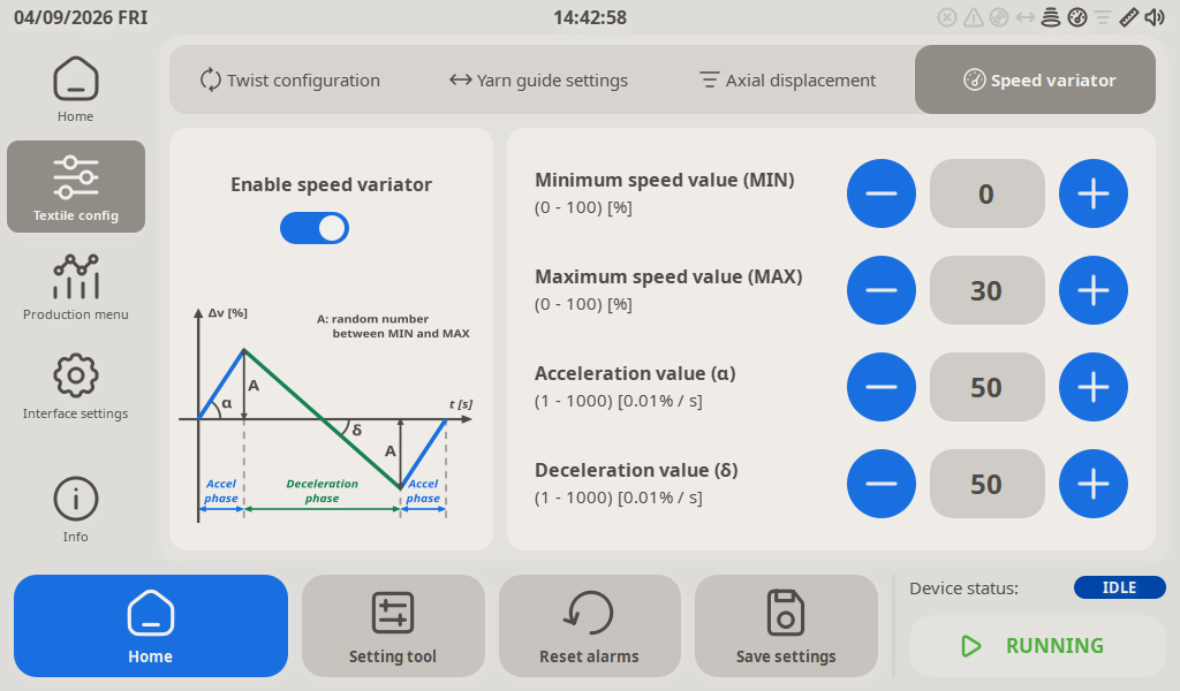

All the parameters are set by means of a 7” capacitive touch screen display:
- spindle turning speed: 1.500 - 13.000 rpm;
- number of twists per meter (TPM): min 60, max 1.500;
- winding cross angle: from 10° to 20°;
- S and Z twist direction;
- reading of the wound yarn length: in meters;
- adjustable collecting speed: from 30 to 100 m/min.
Twister Lab is part of MESDAN Mini Spinning line
A real spinning mill in miniature, to produce small lots of short and long staple yarns.
Ideal for:
- textile institutes and research centers,
- spinning mills of blended, mélange and woolen yarns,
- schools and universities
Accessories (2)
DUO POT System for direct twisting of 2 overlapped packages, for “all-in-one” assembling and twisting, Code 3373S.400
Waxing device, Code 3373S.323
